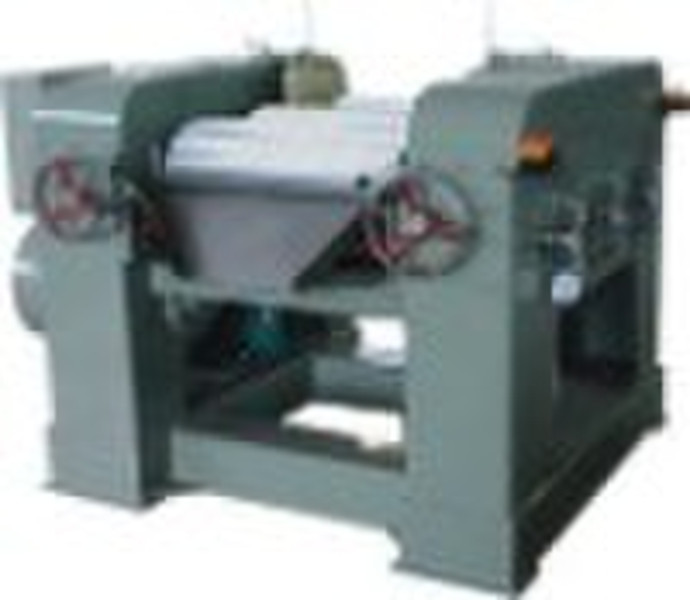

three-roller mill

three roll mill The machine is mainly used to grind various thick liquid of paint, pigment and plastics. It is suitable specially to grind and disperse the products that they have high viscosity and their size are requested to be very fine. The grind is achieved by the rolling of the surfaces of 3 rolls arranged horizontally and by the milling of the rolls in different speeds. ParameterPARPEMETER \ Model S65 S150 S260 S405 S405 DIAMETER OF ROLL mm 65 150 260 405 405 Length of working surface of roll mm 136 300 675 810 1000 Rotation speed of roll Low speed roll r/min 26 28 19.1 12.2 13.7 Middle speed roll r/min 70 65.5 54.5 37.6 42.3 Fast speed roll r/min 145 152 155 116 131 Power of motor kw 0.55 2.2 7.5 15 22 Contour size L×W×H mm 445×340×390 820×800×920 1645×1350×1100 1980×1848×1313 2600×1950×1300 Weight Kg 90 500 2200 5200 5300
